3D Scanners
HandySCAN 3D|EVO Series: The New Benchmark in Quality Control 3D Scanner
Surface inspection 3D scanning solutions for NDT service companies

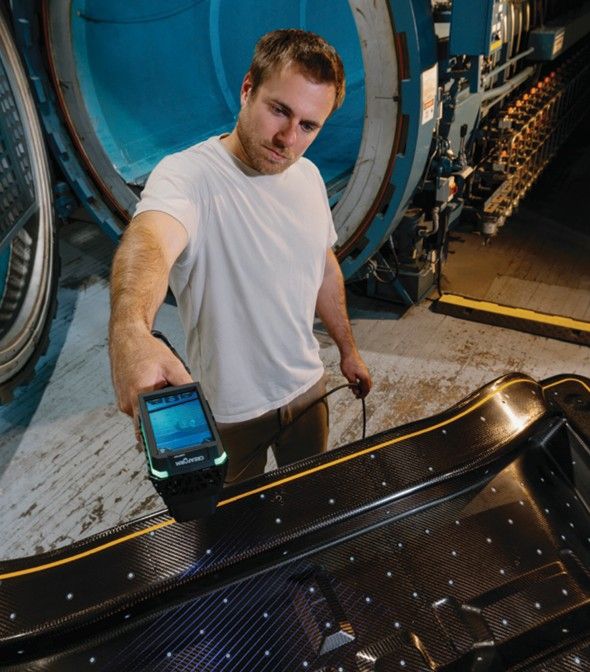

HandySCAN 3D
EVO Series
Part of the HandySCAN 3D™ line-up, the industry standard in portable metrology-grade 3D scanners, the HandySCAN 3D | EVO Series™ features a powerful embedded graphical user interface (GUl) that enhances user experience and efficiency while delivering Creaform’s flagship metrology-grade qualities: proven reliability, renowned portability, and unmatched accredited accuracy.
By integrating augmented reality (AR) capability and a photo camera, the EVO Series further streamlines and enhances the inspection process—enabling QA and QC professionals to document part assessments better and faster, and execute workflows with greater efficiency.
The HandySCAN 3D | EVO Series also offers wireless capability and a robust 3D metrology software platform—providing a fully integrated solution, redefining ease of use, and empowering new users to quickly master the technology, all while also meeting the needs of the most advanced users
Wireless capability & live 3D visualization
Optimized use in hard-to-reach environments
Future-ready technology
Ongoing evolution via Creaform.OS updates
Made in North America
Worldwide customer support
Powerful, Intuitive Software for Optimal User Experience
Creaform.OS™ is a powerful, integrated operating software that provides the best 3D measurement experience across all Creaform systems. Featuring an intuitive interface, user-friendly tools, embedded content, and learning tutorials, the platform is designed to streamline onboarding for new users and overcome a lack of experience, ensuring they can fully leverage the capabilities of their 3D scanners and optical CMMs.

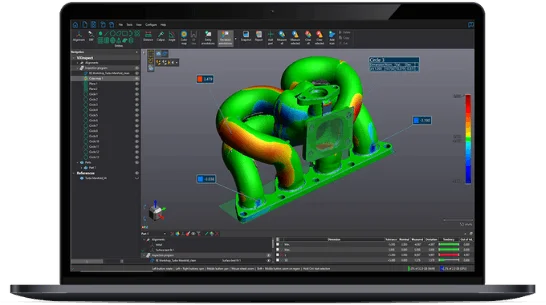

Creaform Metrology Suite™ provides a comprehensive portfolio of application software modules designed for any metrology task.
- Scan-to-CAD
The most intuitive reverse engineering toolkit for transferring data extracted from 3D scans to any CAD platform. - Inspection
Comprehensive and powerful software designed for efficient and accurate dimensional inspections. - Automation
The most user-friendly and integrated programming platform for deploying automated quality control solutions. - Dynamic Tracking
Enables simultaneous position and orientation of multiple objects in space and time.
Technical Specifications
| Specs | HandySCAN EVO | Elite™ |
|---|---|
| ACCURACY | 0.020 mm (0.0008 in) |
| VOLUMETRIC ACCURACY | 0.020 mm + 0.020 mm/m (0.0008 in + 0.00024 in/ft) |
| ACCEPTANCE TEST (3) | Based on ISO 10360 |
| MEASUREMENT CAPABILITIES | 0.750 mm (0.0295 in) |
| LIGHT SOURCE (4) | 46 blue laser lines (+1 extra line) + laser pointer |
| SCANNER CONTROLS | 4.3” touchscreen display and physical buttons |
| PHOTO CAMERA | 12 MP, AR-enabled |
| REAL-TIME CALIBRATION | Included |
| AUTOMATIC ALIGNMENT & CLEAN-UP | Included |
| WORKING DISTANCE | 200 to 750 mm (7.9 to 29.5 in) |
| WEIGHT | 1.04 kg (2.3 lb) |

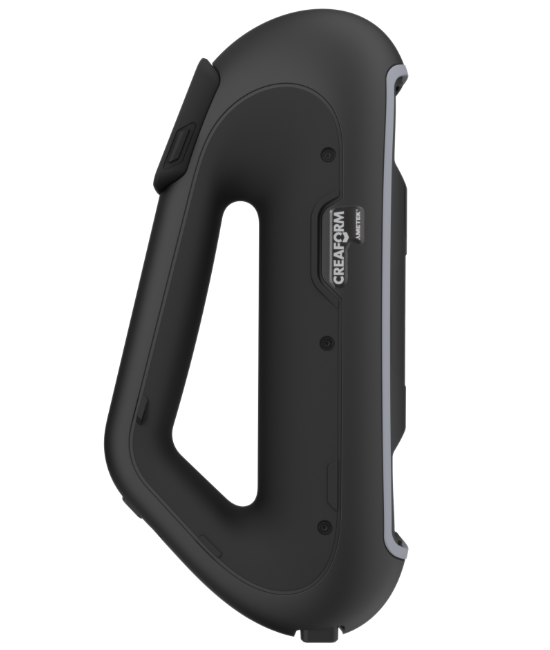

HandySCAN 3D
PRO Series
The PRO Series is part of the HandySCAN 3D™ lineup, the industry standard in portable metrologygrade 3D scanners. This proven and trusted patented technology captures accurate and repeatable 3D measurements of any complex surface, in any location.
The HandySCAN 3D | PRO Series™ is optimized to meet the needs of technology innovators and engineering professionals looking for a powerful, accessible, and reliable way to improve product development, shorten time-to-market, and reduce development costs.
The HandySCAN 3D | PRO Series includes the Scan-to-CAD Pro software module, offering an all-in-one 3D scanner and software solution designed to deliver enhanced performance and reliability for any reverse engineering project.
Proven and trusted solution
More than 10,000 users around the world
Best price-toperformance ratio
Complete solution combining 3D scanner and software
Worldwide repairs and customer support
Worldwide customer support
Best-in-Class Scan-to-CAD Pro Software Included with the HandySCAN 3D | PRO Series

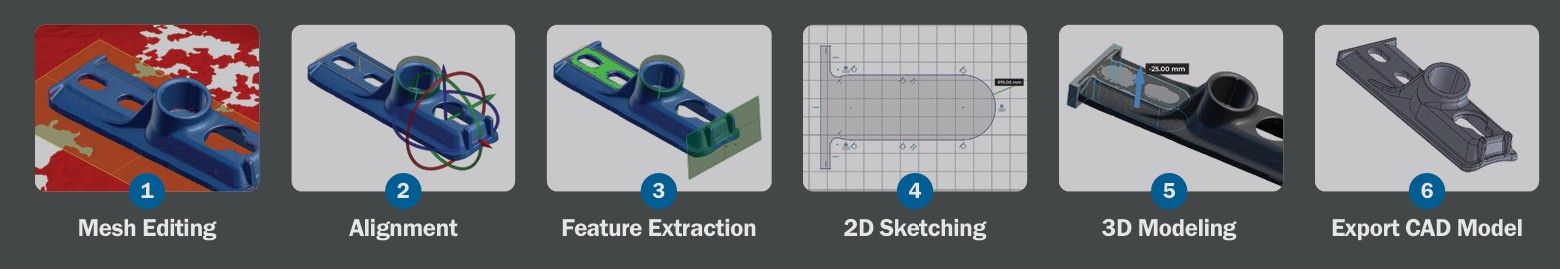

The HandySCAN 3D | PRO Series, bundled with Scan-to-CAD Pro, offers the most intuitive reverse engineering toolkit and the fastest path from scan to CAD. Part of the Creaform Metrology Suite™, Scan-to-CAD Pro is an advanced software module built for designers and engineers who want to sketch and model directly on scan data—supporting operations from cross-section extraction to solid feature creation and complete parametric CAD models.
With broad compatibility across all major CAD platforms and parametric transfer to SOLIDWORKS, users benefit from seamless integration that significantly enhances the efficiency and capability of the scan-to-CAD workflow.
Together, the PRO Series and Scan-to-CAD Pro deliver a streamlined reverse engineering workflow that easily transforms scan data into editable CAD models.
Technical Specifications
| Specs | HandySCAN PRO™ |
|---|---|
| ACCURACY | Up to 0.030 mm (0.0012 in) |
| VOLUMETRIC ACCURACY | 0.020 mm + 0.060 mm/m (0.0008 in + 0.00072 in/ft) |
| MEASUREMENT CAPABILITIES | 1.00 mm (0.0393 in) |
| LIGHT SOURCE (3) | 23 blue laser lines |
| SCANNER CONTROLS | 23 blue laser lines |
| PART SIZE RANGE | Touchscreen display |
| WEIGHT | 920 g (2.0 lb) |
| REVERSE ENGINEERING SOFTWARE | Scan-to-CAD Pro (included) |

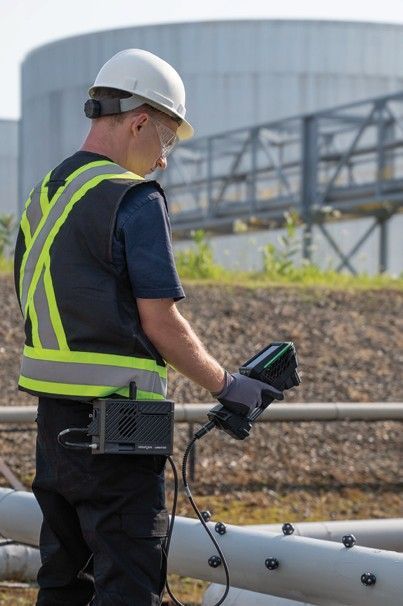

Mobility Kit
EVO Series
Designed to eliminate cable constraints, the Mobility Kit enhances the portability of Creaform’s handheld 3D scanner by providing a seamless wireless connection to the computer.
The Mobility Kit is a lightweight, safe, and compact module that delivers the same trusted accuracy and reliability as a wired connection—all while eliminating the limitations of a tethered setup.
Reliable and Accurate
- Same trusted performance as a wired connection
- No compromise on accuracy or reliability
Easy to use
- Compact module designed for quick, secure belt attachment
- No bulky external router, no external power required
- Swappable batteries, easy to install and remove
Ergonomic
- Certified, safe batteries with built-in protection against overheating
- Comfortable belt-mounted design
HandySCAN 3D | EVO Series with the Mobility Kit
Perfect Synergy.
The Mobility Kit is the ideal companion to the HandySCAN 3D | EVO Series™— together forming a high-performance, fully mobile 3D scanning solution.
Featuring a powerful embedded graphical user interface (GUI), the EVO Series was engineered to simplify the scanning process and improve ergonomics by aligning the user’s gaze with both the scan data and the physical part. The result: more intuitive data acquisition and a more comfortable user experience.
When paired with the Mobility Kit, the HandySCAN 3D | EVO Series stands out as the most powerful handheld 3D scanner on the market—enhancing freedom of movement while delivering Creaform’s signature metrologygrade qualities: proven reliability, renowned portability, and accredited metrology-grade accuracy.
This seamless combination eliminates the need for external power sources, bulky computers, and long cables—allowing you to scan freely and view real-time data directly on the scanner’s integrated display.
Execute your workflows with greater efficiency and elevate your scanning capabilities by combining the Mobility Kit with the HandySCAN 3D | EVO Series.
Technical Specifications
| Specs | Mobility Kit |
|---|---|
| COMPATIBILITY | Handyscan 3D | EVO Series |
| WEIGHT | 644 g (1.42 lb) |
| DIMENSIONS | 129 x 205 x 76 mm (5 x 8 x 3 in) |

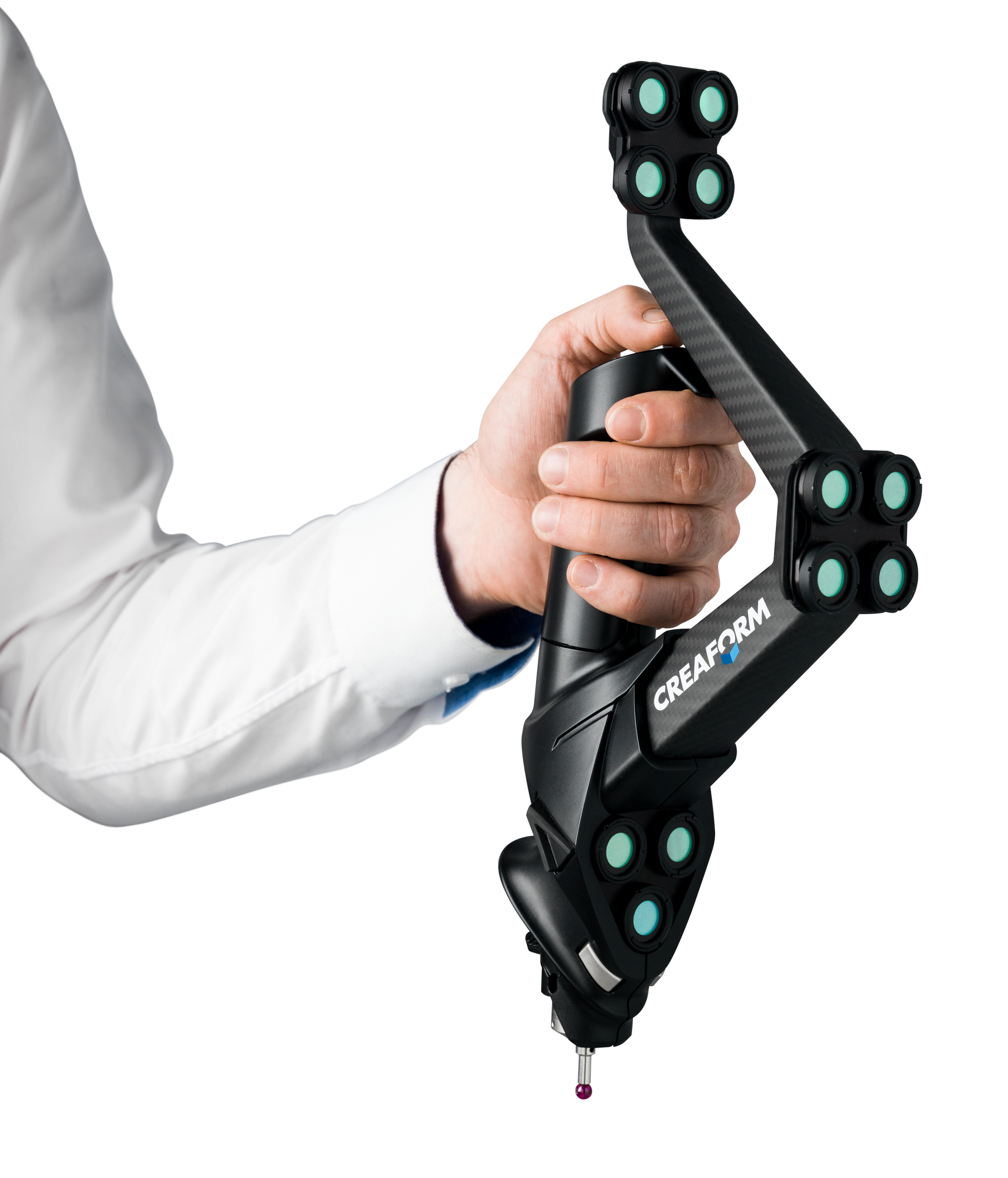

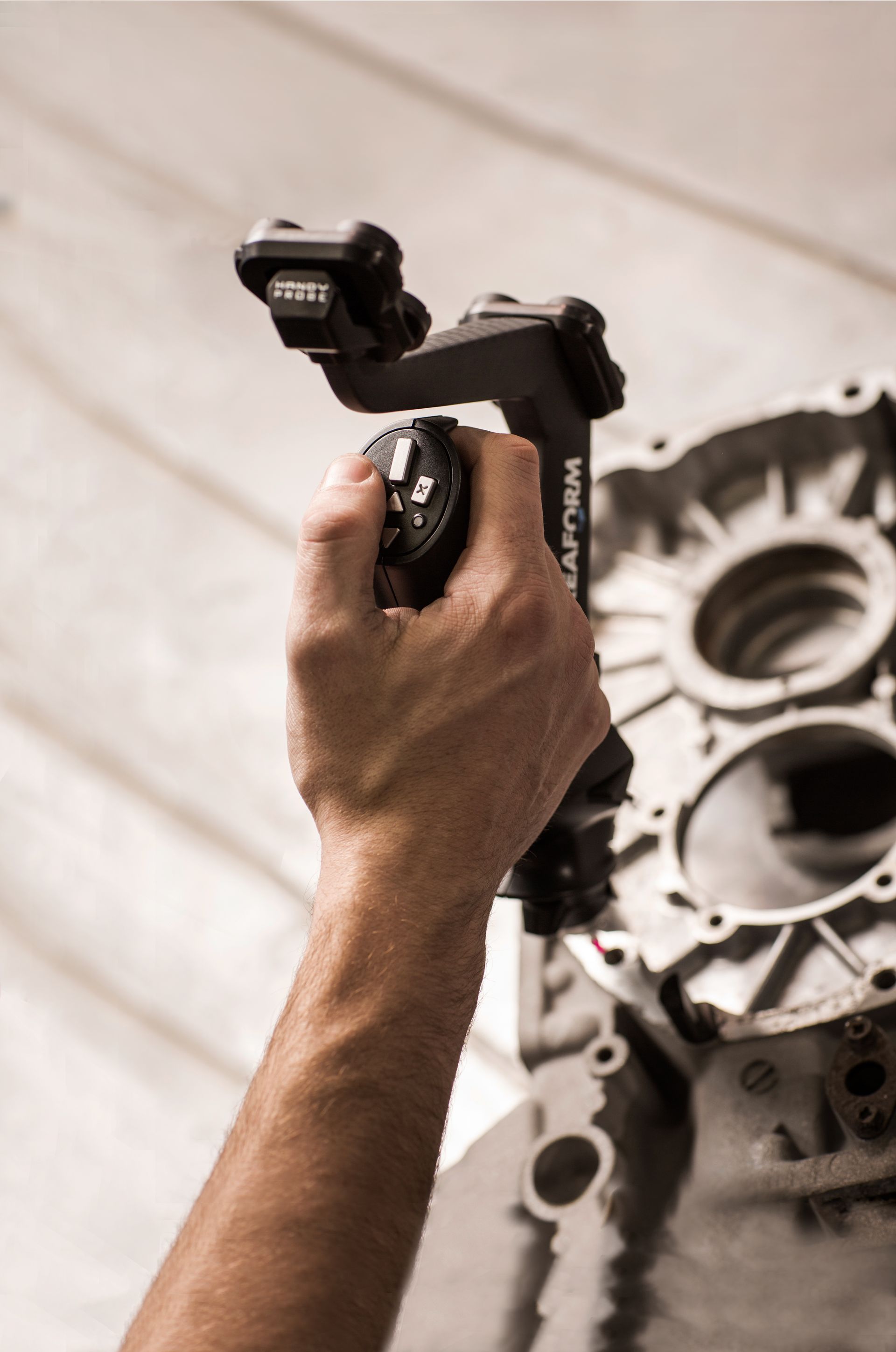

HandyPROBE
THE PORTABLE CMM FOR THE SHOP FLOOR
The HandyPROBE™ is an arm-free portable probing system designed for use on the shop floor. Because its measurement volume is flexible, it can be extended easily and dynamically without significant loss in accuracy, which comes with conventional leapfrog.
Thereby, the HandyPROBE outperforms traditional portable CMMs in simplicity and efficiency. Without the requirements of a rigid measurement setup, the complete measuring system—the part, optical tracker, and wireless probe—can all be moved freely at any time during the measurement sequence, which adds even more simplicity to the process.
Offering measurement accuracy unaffected by the instabilities of the environment, the HandyPROBE is the best metrology solution for measuring geometrical entities on parts of any size directly on the production floor.

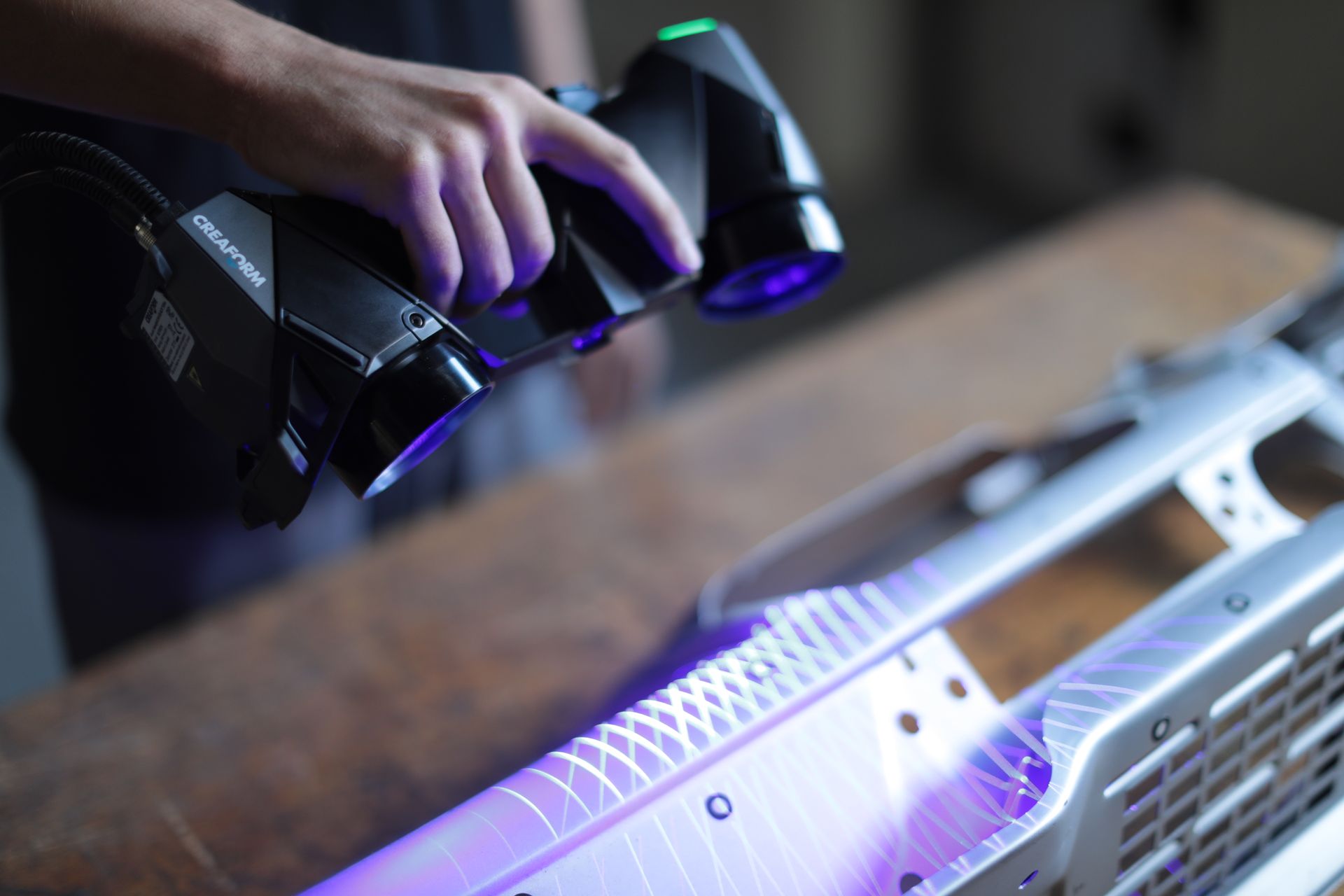

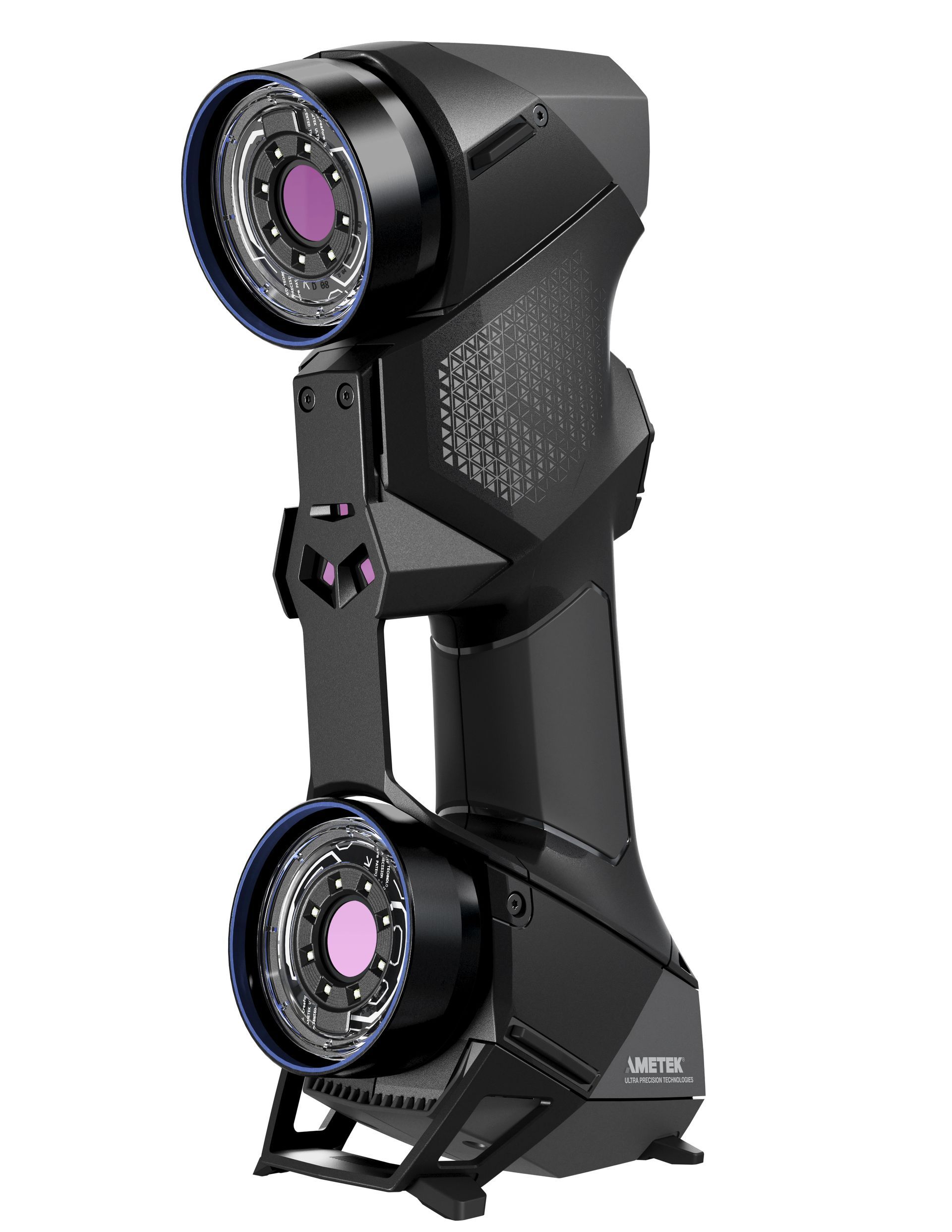

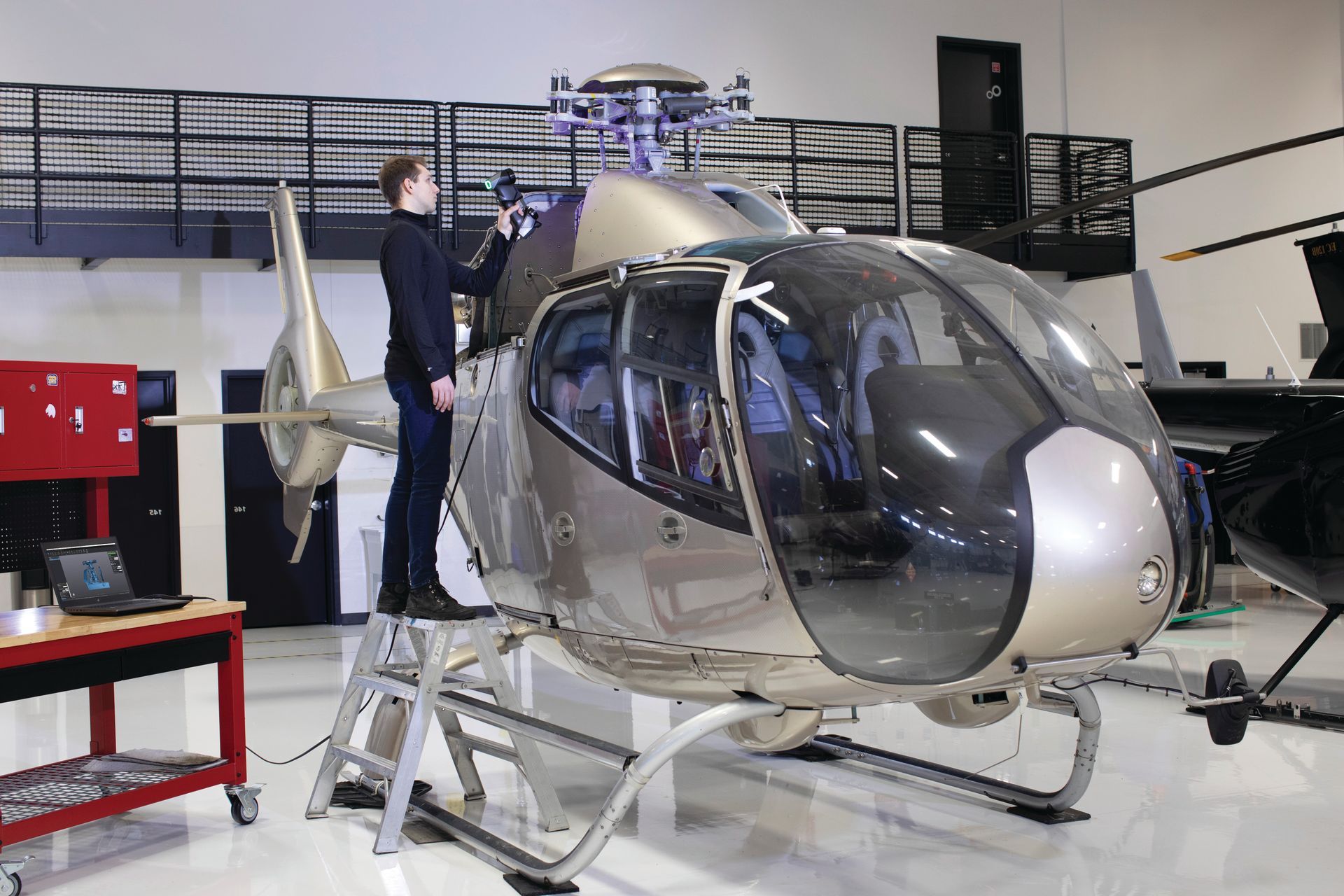

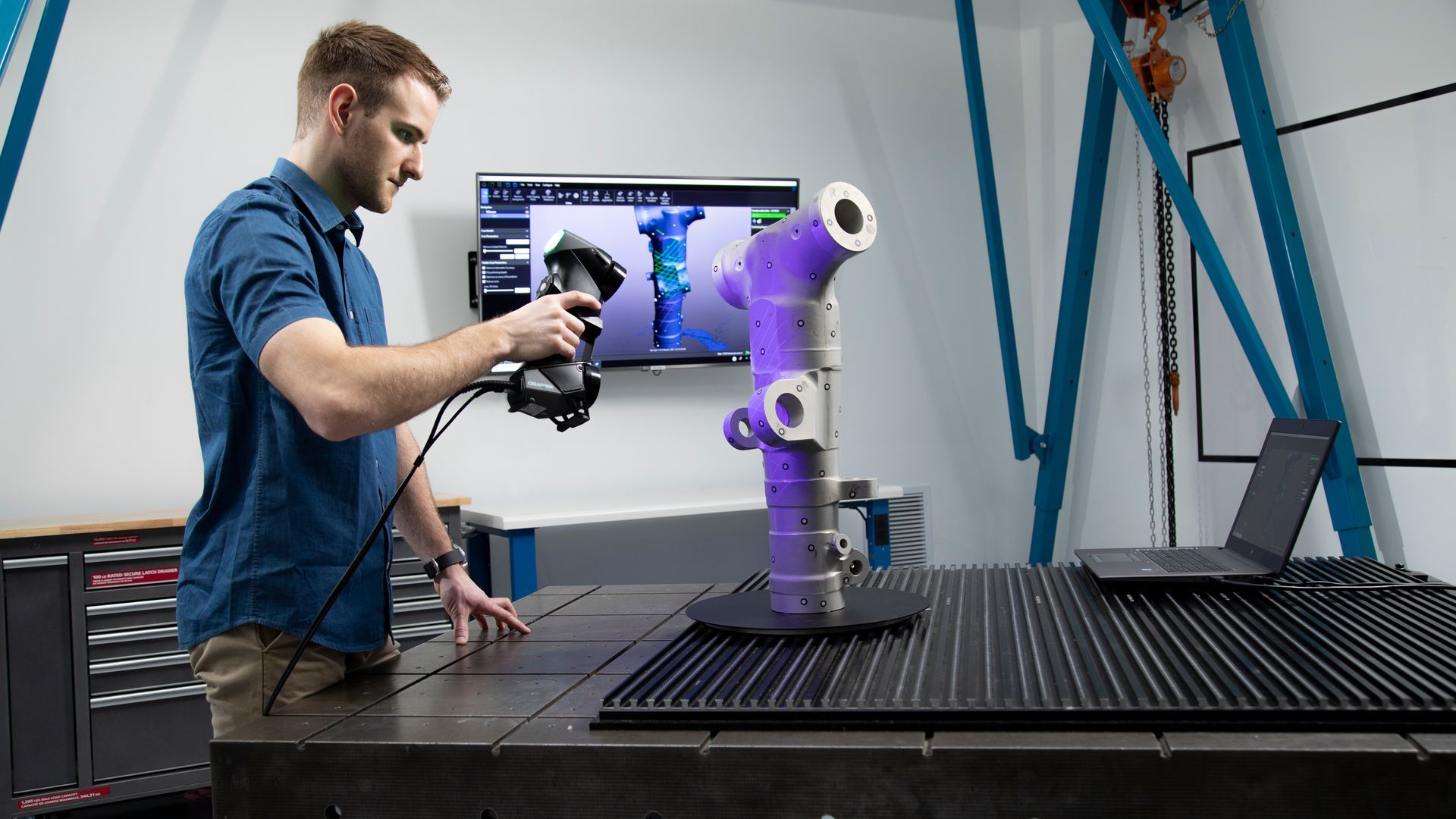

HS Black Elite
THE TRULY PORTABLE METROLOGY-GRADE 3D SCANNER
The HandySCAN 3D™ is the reference in portable metrology-grade
3D laser scanners. Its fast measurement rate increases the speed
and efficiency of measurement processes, whereas its selfpositioning
capability and complete portability allow for impressive
freedom of movement. Moreover, the HandySCAN 3D generates
accurate and repeatable results across all work conditions or
environments, enabling manufacturing companies to reduce
downtime and accelerate time-to-market.
The HandySCAN 3D is the most effective and reliable metrology
solution to acquire accurate 3D measurements of physical objects
anywhere—even in difficult environments and with complex surfaces

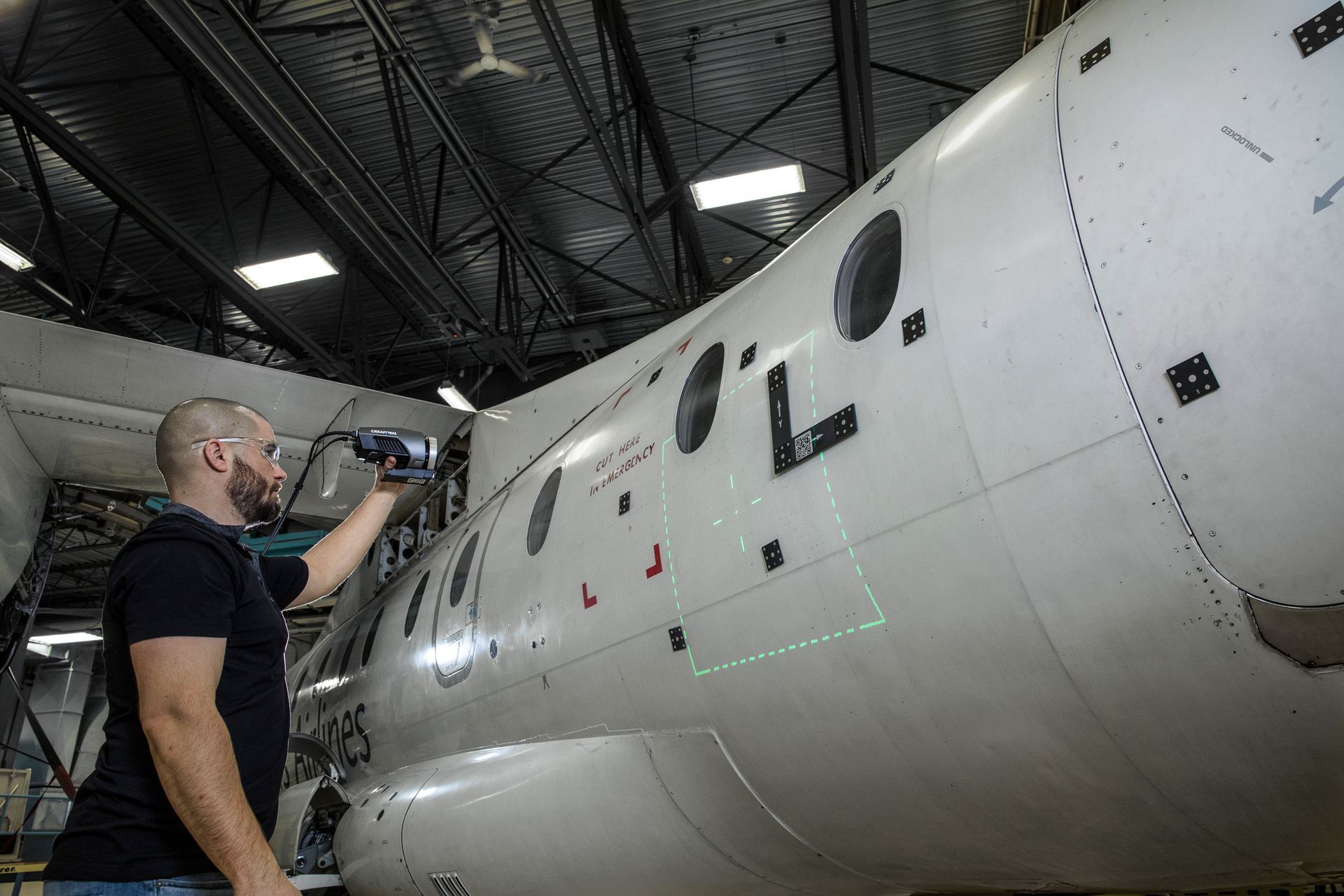

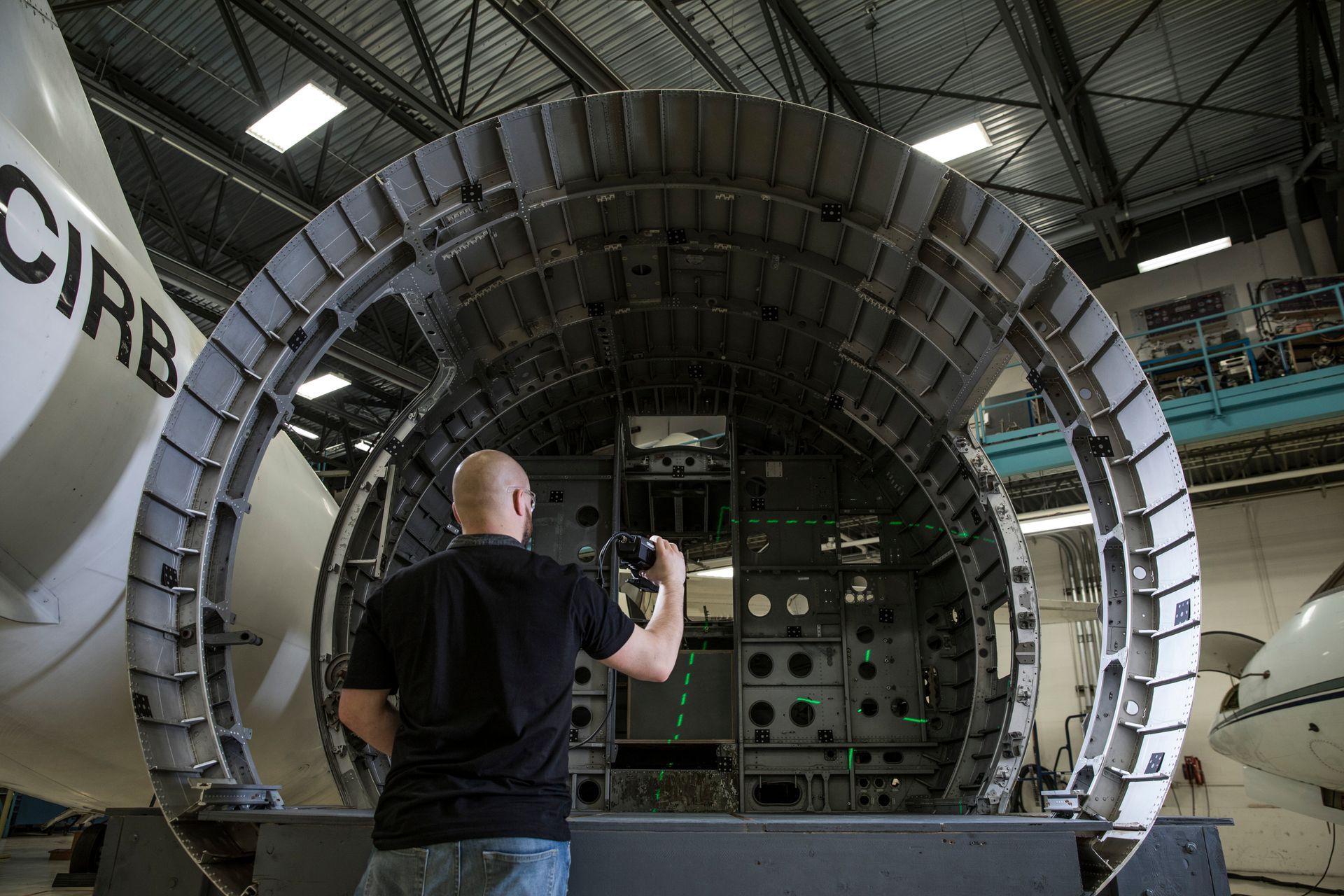

MaxSHOT3D
UNMATCHED ACCURACY ON LARGE-SCALE METROLOGY PROJECTS
The MaxSHOT 3D™ is a portable optical coordinate measuring
system. Based on a series of 2D photos, the MaxSHOT 3D generates
an accurate positioning model for Creaform 3D scanners or portable
CMM technologies. It provides the high data accuracy and efficiency
of photogrammetry required for a wide range of applications,
specifically large-scale projects and large-size parts. Thanks to its
sophisticated user guidance technology and laser-projected software
feedback, the MaxSHOT 3D is accessible to everyone, regardless of
their knowledge in metrology.
The MaxSHOT 3D is the best solution for quality control and
inspection teams who need the highest measurement accuracy and
efficiency on large-scale metrology projects.

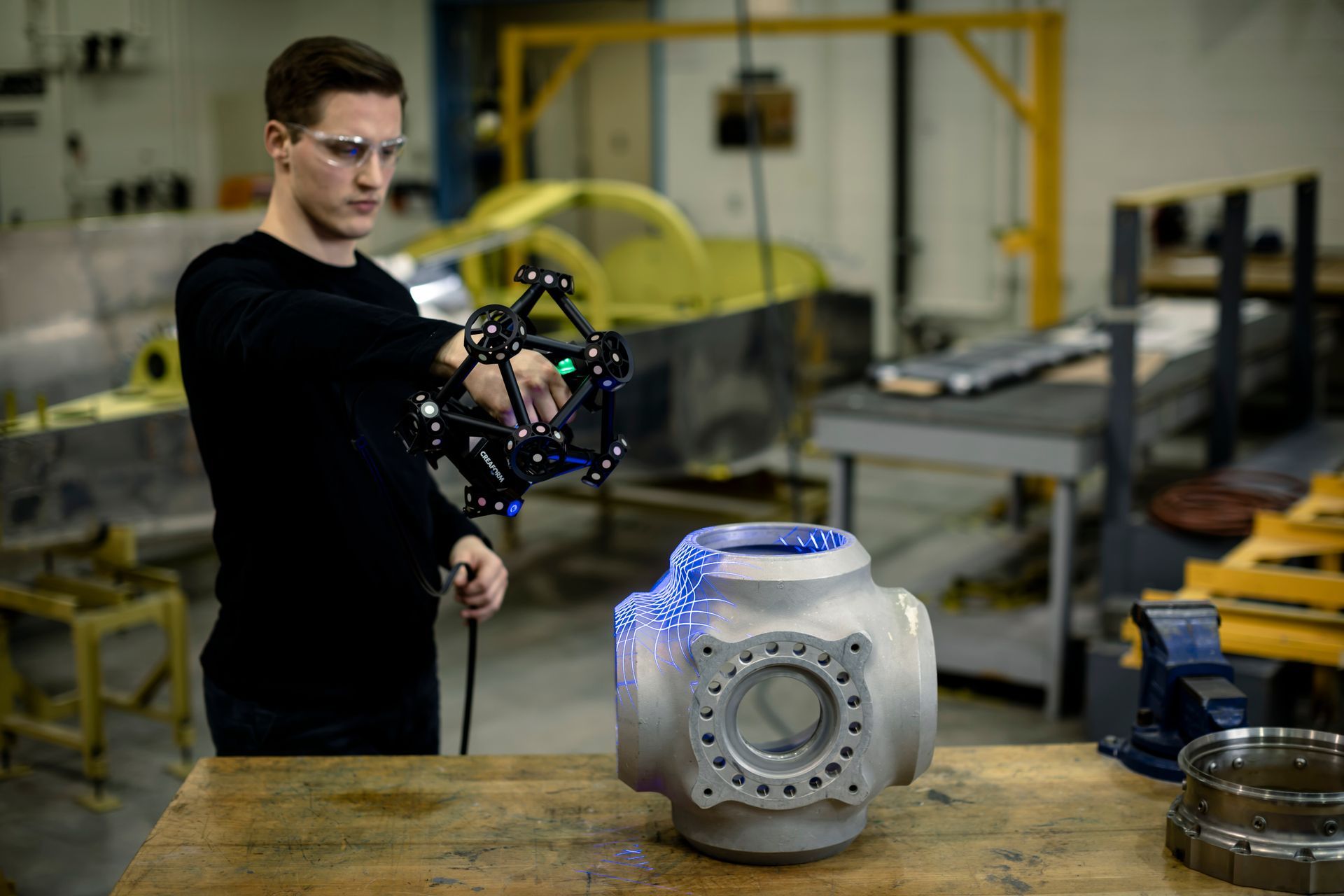

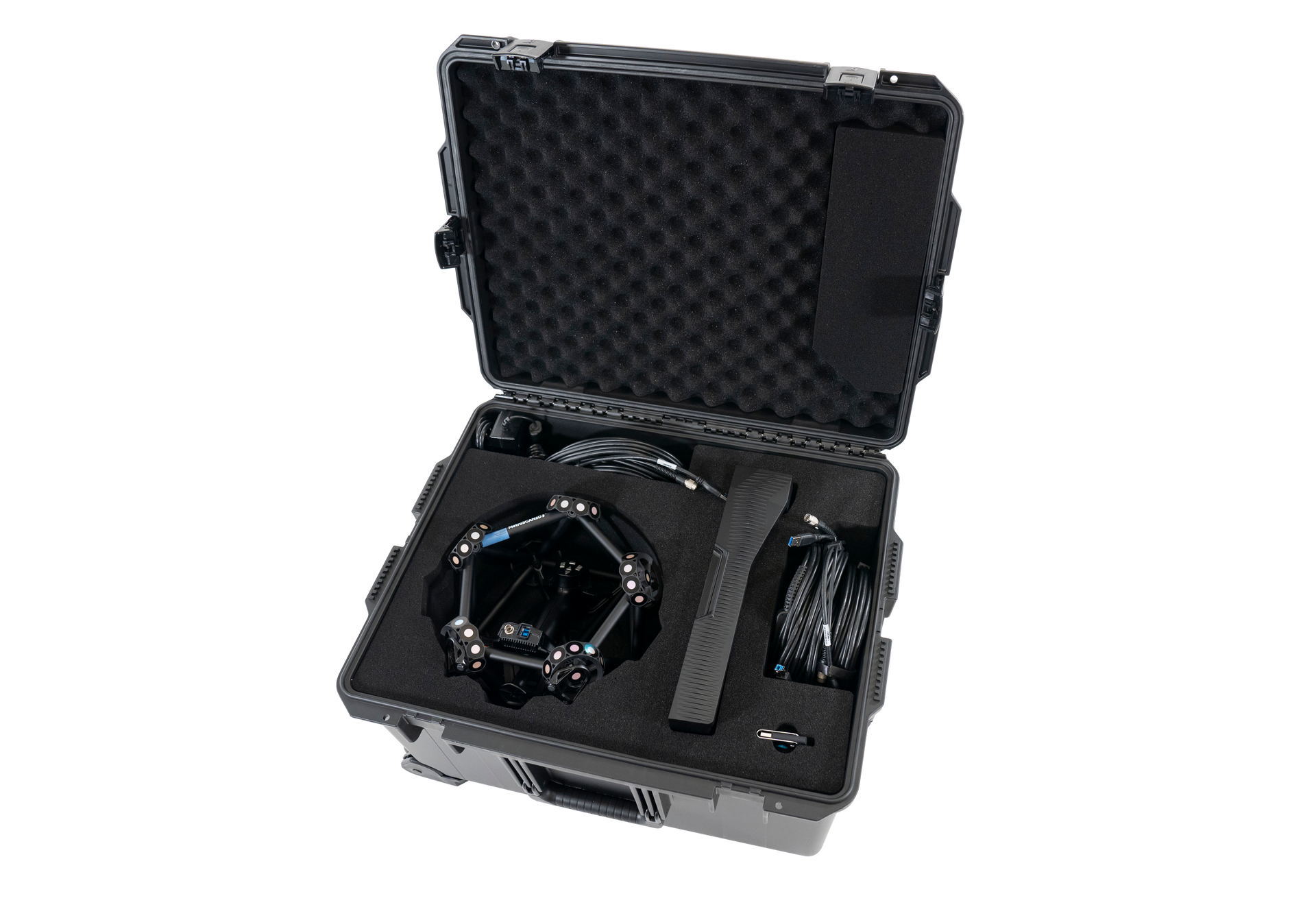

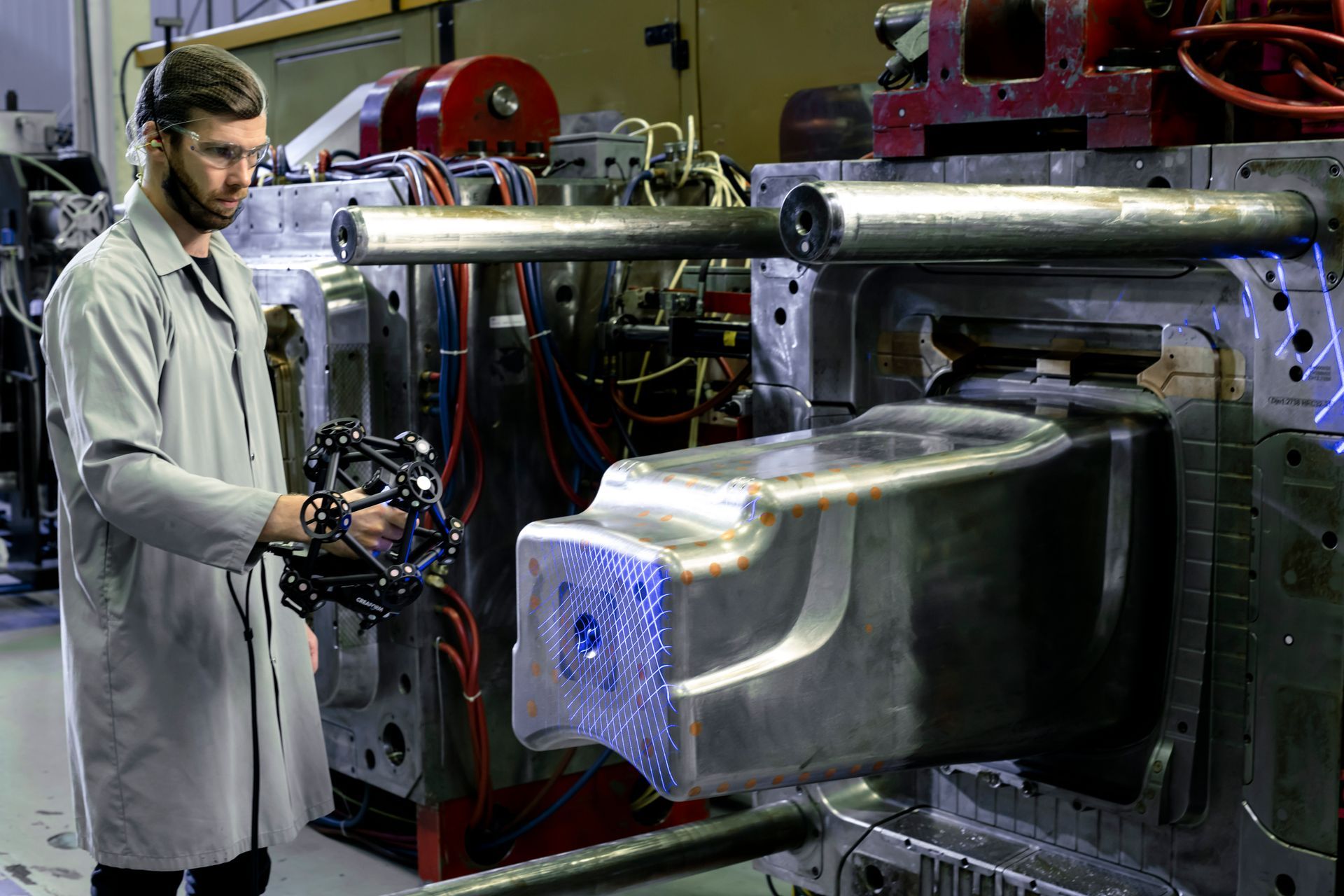

MetraSCAN
FAST AND ACCURATE 3D SCANNER & PORTABLE CMM FOR THE SHOP FLOOR
The MetraSCAN 3D™ is the most complete 3D scanning solution for metrology-grade measurements and inspections. Insensitive to shop floor vibrations, part movement, and environmental instability, it significantly increases the efficiency, speed, and simplicity of measurement processes. Engineered to work both in the metrology lab and on the production floor, the MetraSCAN 3D is designed for manufacturing and metrology professionals who want to deliver approved quality parts quickly and efficiently.
MetraSCAN 3D is the ideal shop floor metrology solution for performing 3D dimensional and surface inspections on a large variety of parts regardless of size, material, finish, or complexity.
